AstroSat data from 'Butterfly Nebulae' enables new discoveries about dying stars

The find could help solve an elusive astrophysics problem for the 'missing mass in planetary nebulae'.

Indian astrophysicists have discovered large ultraviolet lobes and jets that were hurled out from a dying star using data from AstroSat – a space observatory launched by the Indian Space Research Organisation (ISRO) in 2015.

The discovery has been featured as the AstroSat Picture of the Month (APOM) for October.

Professor Kameswara Rao of the Indian Institute of Astrophysics (IIA) and his collaborators used the Ultra-Violet Imaging Telescope (UVIT) on board AstroSat to stare at a planetary nebula called NGC 6302, popularly known as the Butterfly Nebula.

A planetary nebula is formed when a star like our Sun, or a few times heavier, is in its dying days. The term, a misnomer now, was coined by astronomers in the 19th century since the nebula looked like planets through their telescopes.

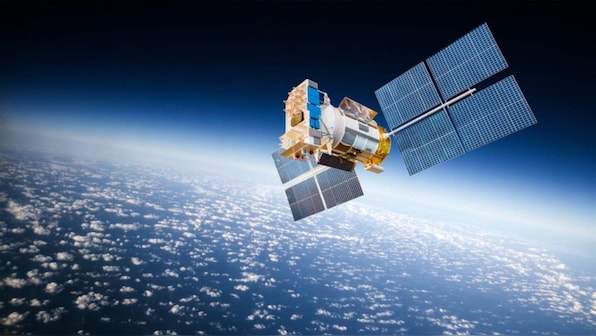

An artistic rendering of the AstroSat satellite. Image courtesy: ISRO

An artistic rendering of the AstroSat satellite. Image courtesy: ISRO

“When hydrogen and helium fuel that kept the star shining gets exhausted, the star expands in size and becomes a red giant star. Such stars shed most of their outer layers which expands outwards, and the inner core, made of carbon and oxygen, shrinks further and becomes hotter. This hot core shines brightly in the ultraviolet, and ionizes the expanding gas. This glowing ionized gas is what is seen as a planetary nebula”, Prof Rao explained.

Sriram Krishna, a student of Rao, spent many hours analysing the data from the Butterfly Nebula.

“Its central star is one of the hottest that we know, at 220000 degrees. The name itself comes from the shape of the two lobes of expanding gas that look like the wings of a butterfly”, he said.

One might expect a Planetary Nebula to be spherical, but it actually exhibits a range of complicated structures. “We used the UVIT on AstroSat to make four images of the nebula, each in different ultraviolet 'colours', or filters. The image made with the filter centred at 160.8 nanometres, called F169M, had a surprise in store for us”, said Krishna.

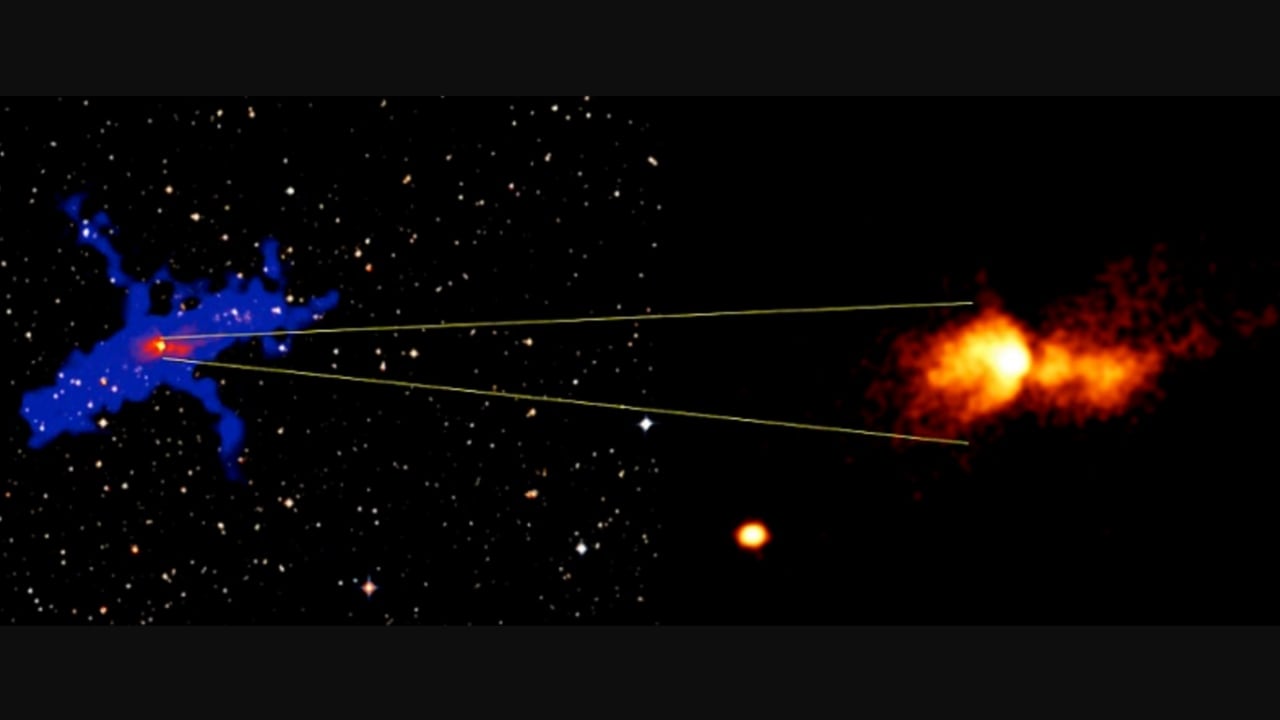

On the right is a false-colour image of the bright ultraviolet lobes of the Butterfly Nebula, as pictured from AstroSat data. On the left is the same image in red, with a cartoon in blue marking the full extent of the newly discovered ultraviolet lobes and the jets. Image credit: Rao and Sriram.

On the right is a false-colour image of the bright ultraviolet lobes of the Butterfly Nebula, as pictured from AstroSat data. On the left is the same image in red, with a cartoon in blue marking the full extent of the newly discovered ultraviolet lobes and the jets. Image credit: Rao and Sriram.

Astronomers have studied the two lobes of the nebula for many years through visible light images. They expect that the more energetic ultraviolet light would be emitted closer to the central star, where the hot stellar wind hits the slowly expanding gas.

“However, we discovered that the lobes imaged with the F169M filter in ultraviolet were about three times larger than the size of the lobes imaged in visible light”, said Sriram. After careful analysis, their study concluded that this ultraviolet emission must be due to cold molecular hydrogen gas outside the visible lobes which had gone undetected so far.

“Our discovery points to an unseen companion star in an orbit with the central star”, said Firoza Sutaria, one of the co-authors. In addition, researchers discovered two faint jets blasting out from the centre, at almost right angles to our new ultraviolet lobes.

The team led by Prof Rao has recently discovered a large ultraviolet halo in yet another planetary nebula using AstroSat, and will be looking at many more such objects in the future. They hope that such discoveries may provide the answer to the age old puzzle of the 'missing mass problem in planetary nebulae'.

This discovery was made possible because of the uniqueness of UVIT.

“Of all the ultraviolet telescopes in space, UVIT is special in its ability to image a large field of view with a very high resolution, or detail”, said Dr V Girish of ISRO.

“This ability, coupled with a novel image analysis software that we had developed led us to this discovery”, explained Prof Jayant Murthy, a co-author of the paper, and Director of IIA.

These results have been published recently in the journal Astronomy and Astrophysics.
